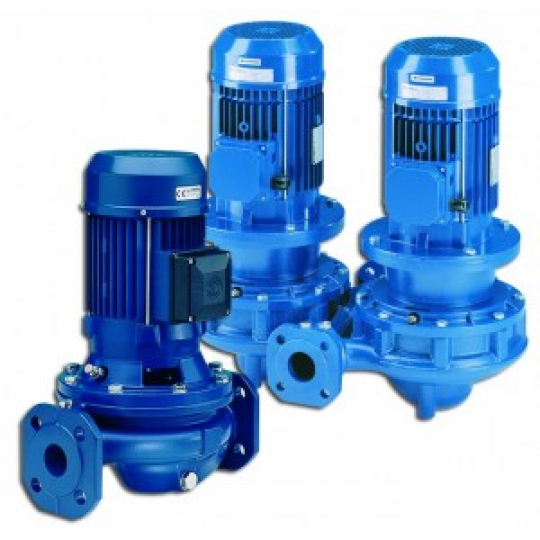

GFC Cast iron in-line single and twin pumps

In-line centrifugal pumps with cast iron pump body, AISI 316L stainless steel impeller entirely welded using laser technology. Suitable for handling hot or cold moderately aggressive liquids.

The following models are available:

• GFCE-GFCTE Close-coupled with special motor shaft extension.
• GFCS-GFCTS With stub shaft and standard IEC motor.

Specifications

• Delivery: up to 330 m³/h
• Head: up to 89 m
• Power supply: both single and three-phase 50 and 60 Hz
• Power: from 0.25 kW up to 22 kW
• Maximum operating pressure: 16 bar
• Temperature of pumped liquid: from -20 °C to 140 °C
