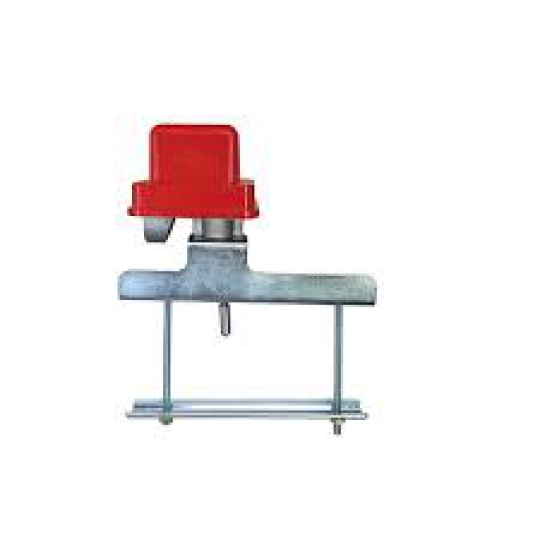

BS Supervisory Switch for OS&Y Gate Valve (MXHQ)

• Service Environment: Indoor or Outdoor use, all parts have corrosion resistant finishes

• Temperature Range: 0℃ - 80℃

• Cover Tamper:

Tamper Resistant Screws

Optional Cover Tamper Switch Available

• Electrical Ratings: 15 Amps at 125/250VAC

• Appliance Standards: NFPA-13, NFPA-13D, NFPA-13R, NFPA-72

• Statement: The Model MXHQ Supervisory Switch is used to monitor the open or close status of an OS&Y (outside screw and yoke) type gate valve. There are two sizes, the model MXHQ D50 serves the OS&Y Gate valves ranging in size from 2"-16"(50mm - 400mm), the other model MXHQ D450 is fit for the OS&Y Gate valves ranging in size from 18"- 24"(450mm - 600mm).
